Colorful PVC Electrical Insulation Tape – Electrician Grade

Colorful PVC Electrical Insulation Tape – Electrician Grade

PVC electrical insulation tape starts with a polyvinyl chloride backing that actually stretches – not too much, just enough to follow odd shapes around terminal blocks or repair chewed lamp cords. The adhesive grabs clean metal or rubber jackets without slipping after a week. We keep the roll thickness around 0.13-0.18mm because thicker feels stiff, thinner rips when you pull. This same tape handles bundling as a wire harnessing tape and works fine for color marking tape (phases, neutrals, grounds). For indoor panels and automotive looms, it’s the one you reach for before searching something fancier.

Technical Parameters

Key Advantages

•
  Hand-tears clean – No jagged edges, no need for scissors every time.
•
  Holds curl – Won’t unspool inside your pouch after half a day.
•
  Low residue – Comes off most panels without scraping glue for ten minutes.
•
  UV resistant enough – Survives a season on outdoor temporary wiring.
•
  Thickness varies less than 0.01mm – You won’t find thin spots or bumps.
•
  Stays on cold cable – No lifting at -5°C on a winter site.


  ---

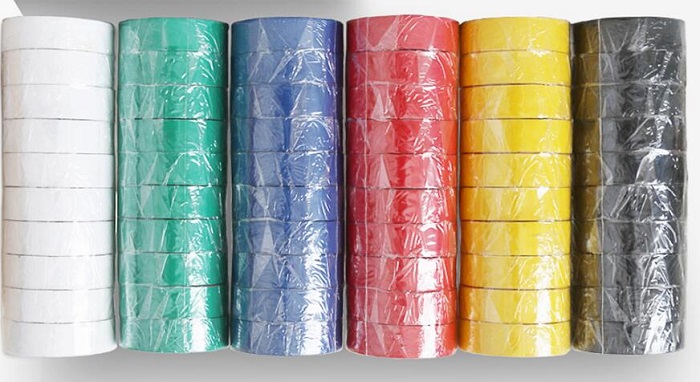

  Product Packing & Shipping
• Each roll or 10rolls are shrink-wrapped as different requirement.
• Master carton: 1000 rolls (black) or mix of colors per request. Or do customized carton quantity and printing
• LCL and FCL cargo will be shipped by sea by FOB or CIF term, or use DDP for small restocks.

How to Use
Pull about 10cm off the PVC electrical insulation tape roll.

Wrap your first turn without stretching – just lay it flat.

Second turn: stretch 20-30% while overlapping half the previous wrap. Keep the tension steady.

Finish with a loose last turn, then press the end down hard. That’s it. No need to pull until it whistles.

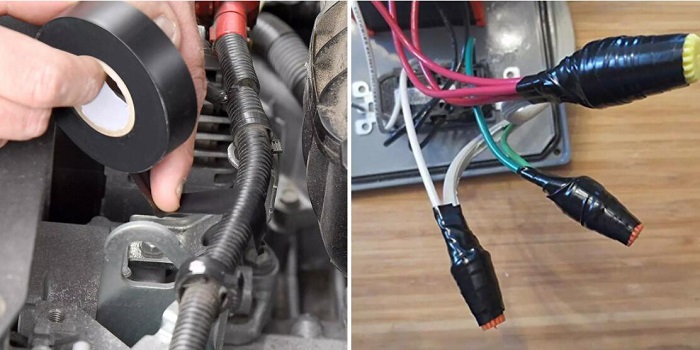

Applications

The tape is used for insulation, connection, phase labelling, sheath protection and colligation of wire and cable under 600v and below 80c, and  also can be worked for bandaging , fixation, splicing, remedy, encapsulation and protection in the industry

Repairing nicked extension cords on job trailers
Color coding 24V control wires inside industrial panels
Bundling sensor cables behind machine guards
Wrapping small harnesses under dashboards (not near exhaust manifolds)
Temporary marking – wrap a red band on a wire you plan to remove later

FAQs
Q: Can I use this on 480V splices?
A. It’s rated 600V max. For primary insulation, pair it with rubber splicing tape underneath. Alone? Only for 300V and below.

Q. Does PVC electrical insulation tape get gooey in hot attics?
A. Up to 80°C it’s fine. Above that (roof surface in July), adhesive may soften. Use our high-temp version for attic runs.

Q. Shelf life in a truck toolbox?
A. About 18 months if not cooked. Leave it on a dashboard for a summer – it’ll shrink.

Q. Any problem with oil exposure?
A. Resists light oil. Not for soaking in hydraulic fluid.

Why Buy From Us
Every batch of PVC electrical insulation tape gets a pull test and a thickness check before it leaves. We handle our own compounding and slitting, not third-party reselling. Custom colors or printed logos are done in house with typical lead time of fifteen working days. Standard rolls ship within three days. By selling directly, our prices undercut most European and American brands without cutting corners. Over fifteen years of manufacturing experience – you get control, not a sales script.
