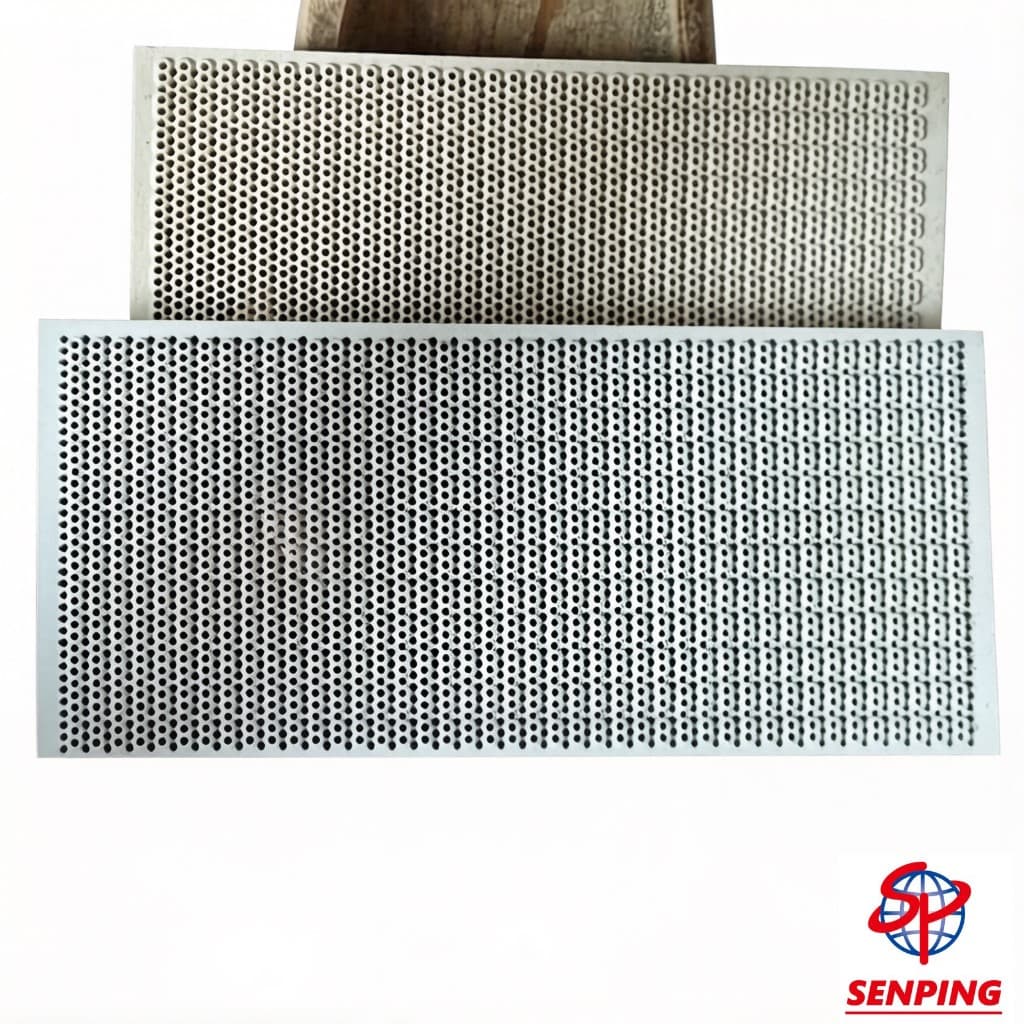

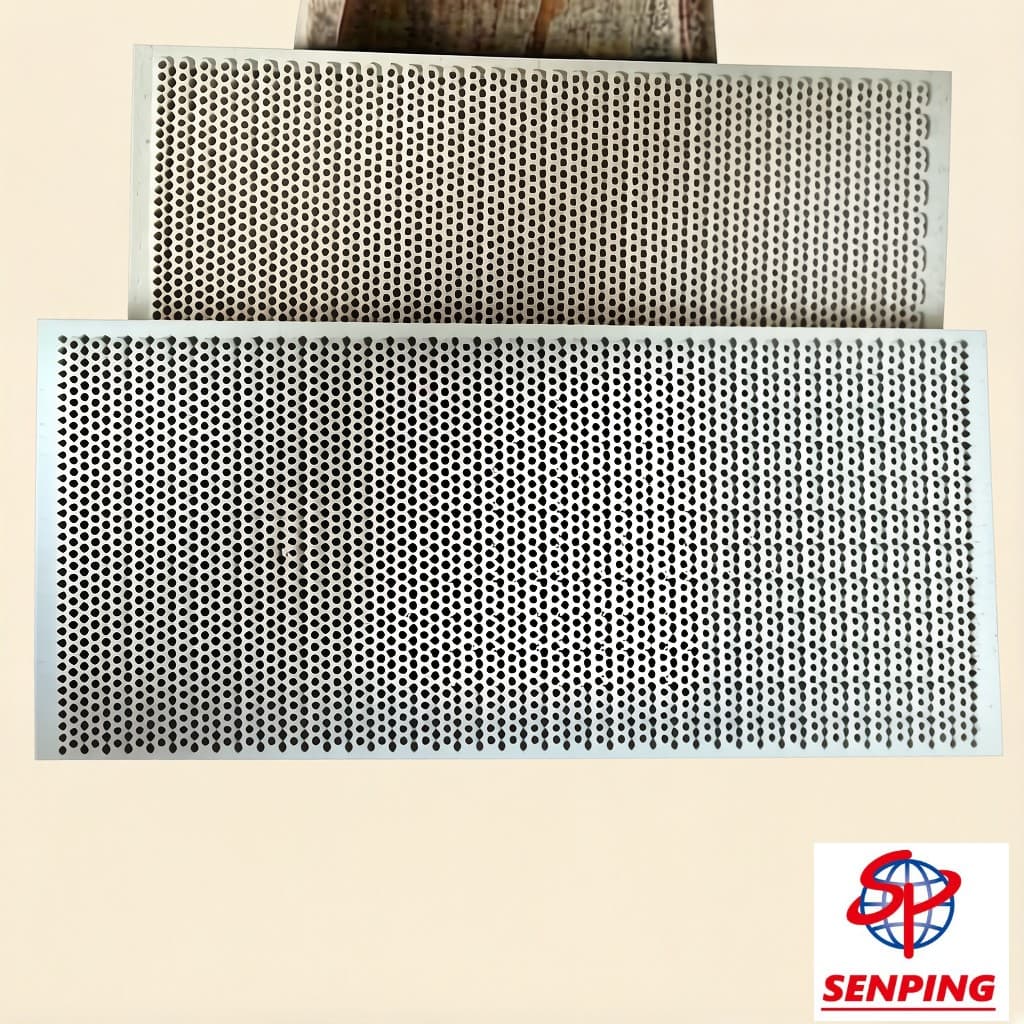

This is an infrared honeycomb ceramic burner plate built for gas-fired heating equipment. It spreads heat evenly and works well in commercial kitchens, drying lines, and industrial ovens.
Order(MOQ) :
1000pcsPayment :
T/T, PAYPALProduct Origin :
CHINAColor :
White,Beige,Black, Green,Red, or CustomizedShipping Port :
Shanghai, Guangzhou, Ningbo, ShenzhenLead Time :
15-20 daysInfrared Honeycomb Ceramic Burner Plate for Gas Heaters

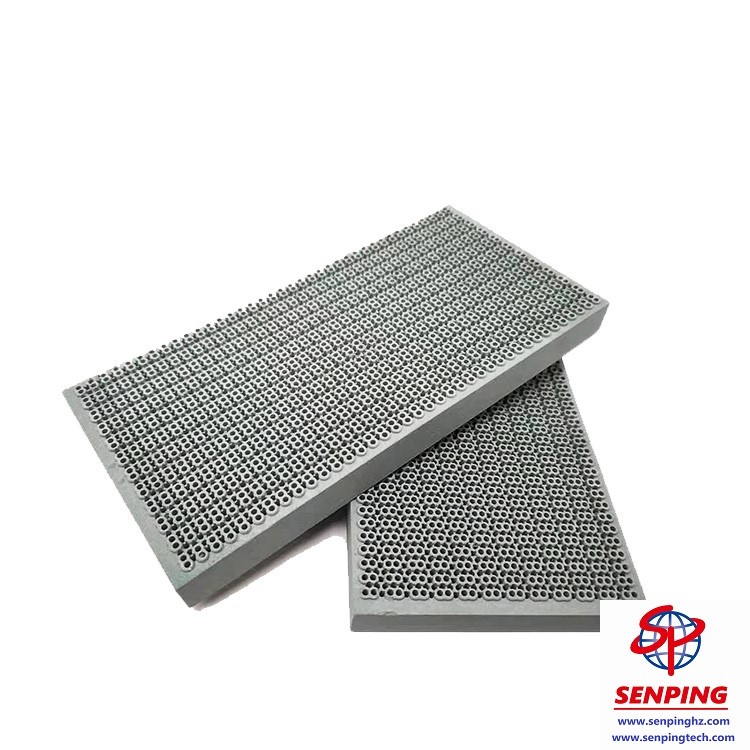

Infrared honeycomb ceramic burner plate is mainly made from cordierite . The small holes inside help mix gas and air properly so the surface glows red and sends out strong infrared heat. It handles high temperatures without cracking and lasts longer than metal burners. Other related features: high thermal shock resistance (no cracks from sudden heat changes), low pressure drop (gas flows easily), and low NOx emission (cleaner burning). Many customers use Infrared Honeycomb Ceramic Burner Board to replace old burner plates in gas fryers, paint drying tunnels, and greenhouse heaters.
Technical Parameters:
| Parameter | Value |
|---|---|
| Material | Cordierite |
| Max working temperature | 1100°C |
| Open porosity | 38% – 42% |
| Cells per square inch | 150 – 300 |
| Thickness | 12 mm, 15 mm, 20 mm (custom) |
| Thermal expansion coefficient | ≤ 2.0×10⁻⁶ /°C (20–800°C) |
Key Advantages:
| Advantage | Why it matters |
|---|---|
| Cuts gas use by 20–30% | More infrared radiation means less fuel needed. |
| No hot spots | Honeycomb structure spreads flame evenly across the whole plate. |
| Withstands thermal shock | You can turn it on/off quickly without cracking. |
| Low CO and NOx | Meets environmental rules in most states. |
| Easy to replace | Same size as standard burner plates from other brands. |
| Custom hole pattern | We can change cell density for your specific gas pressure. |
Product Packing & Shipping:
Packing: several pcs is wrapped by foam pearl cotton , and then around 200pcs into a carton, and later into a plywood box.
Shipping: Usually by sea from Shanghai ,Guangzhou, Shenzhen or Ningbo. Air freight available for small orders. Sample orders ship by DHL or FedEx. Lead time: in-stock sizes ship in 3–5 days; custom sizes take 2–3 weeks.
How to Use:
Turn off gas supply and let the old burner cool down.
Remove the old plate and clean any dust or rust from the burner housing.
Put the new infrared honeycomb ceramic burner plate into place. It should sit flat with no gaps.
Reconnect gas and open the air shutter a bit. Light the burner – the flame should stay just above the surface. If you see yellow flame, adjust the air until it turns blue.
For the first hour, run it at half power to season the ceramic. Then use normally.
Applications:
Gas fryers in restaurants and fast food chains
Industrial paint drying and powder coating lines
Textile drying machines
Poultry and livestock barn heaters
Outdoor patio heaters
Preheating furnaces for metal parts
FAQs:
Q: How long does an infrared honeycomb ceramic burner plate usually last?
A: In a busy kitchen or factory, about 3 to 5 years. If the gas has too much sulfur or the burner runs too rich, life can be shorter.
Q: Can I cut the plate to a smaller size myself?
A: No. Cutting will break the honeycomb structure and cause cracks. Tell us your size – we cut it during production.
Q: Does this work with propane or natural gas?
A: Both. The burner plate itself doesn’t care. Just adjust the air-to-gas ratio at the burner.
Q: My current plate has different thickness. Can you match it?
A: Yes. Send us a drawing or sample, and we’ll make the same thickness and cell pattern.
Q: How to clean the Infrared Honeycomb Ceramic Burner Tile if it gets oily?
A: Take it out and gently brush off loose dirt. Never use water or liquid cleaner – it can clog the pores. Blow compressed air through from the back side.
Why Choose Us:
We’ve made Infrared Honeycomb Ceramic Burner Plate since 2020, mostly for export to the Europe,Asia .
You get a free sample check before mass production – we send photos and test results.
No hidden fees. Price includes packing and standard edge finishing.
If a plate cracks within 6 months under normal use, we replace it for free.
We answer emails within one business day, not a chatbot.
This is an infrared honeycomb ceramic burner plate built for gas-fired heating equipment. It spreads heat evenly and works well in commercial kitchens, drying lines, and industrial ovens.
View More
Upgrade your gas heating equipment with our infrared ceramic tile. It turns flame into even infrared radiation for cleaner, more efficient combustion.
View More

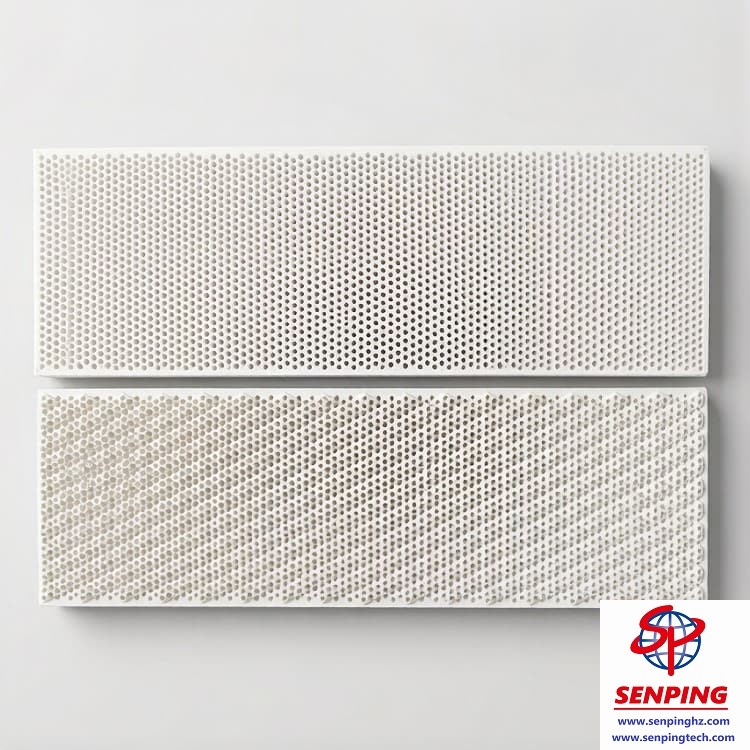

Cordierite infrared ceramic burner plate is a reliable upgrade for various heating systems. Efficient and uniform radiant heat.
View More

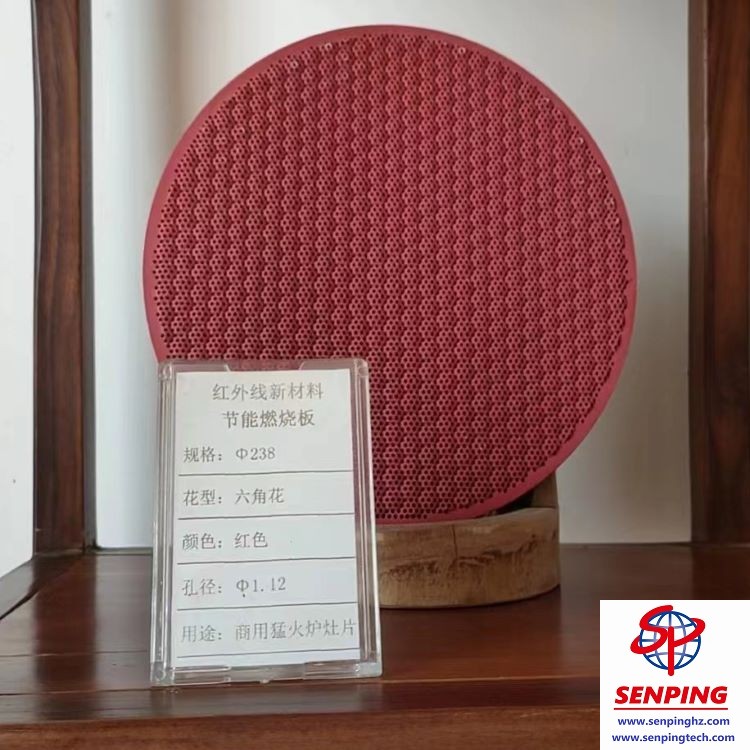

Radiant burner ceramic plate is designed for direct-fit replacement in gas-fired infrared heating systems. It delivers even surface combustion and holds up well under repeated thermal cycling.
View More

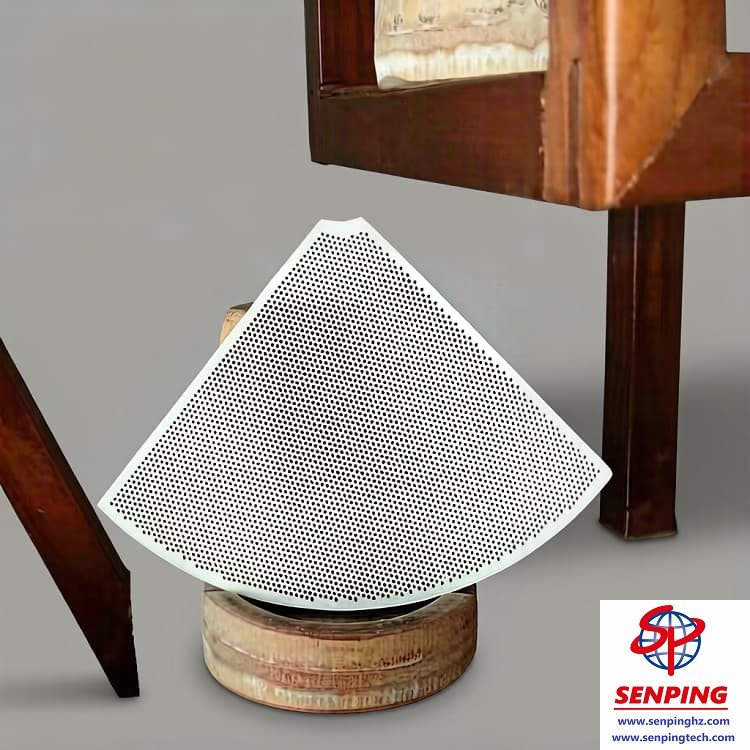

Infrared ceramic plate for BBQ grill spreads steady warmth across the cooking surface, so meat and veggies turn out just right.
