Single Sided EVA Foam Tape – Sealing, Cushioning, Vibration Dampening

Single Sided EVA Foam Tape – Sealing, Cushioning, Vibration Dampening

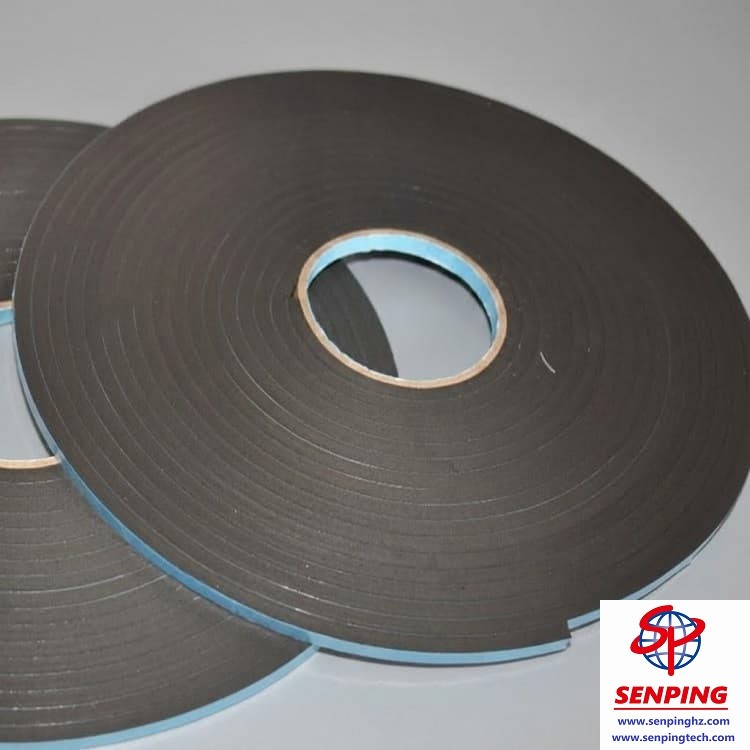

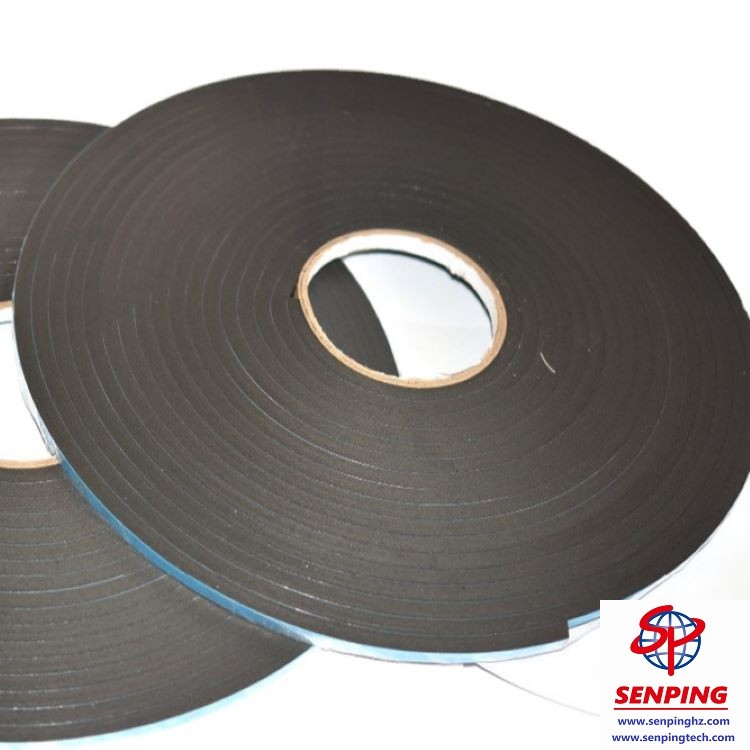

Single sided EVA foam tape consists of a closed cell EVA foam layer with a hot melt rubber adhesive on one face. The closed-cell structure limits moisture and dust ingress – water absorption stays below 0.5% after 24 hours. The adhesive grabs clean metal, plastic, wood, and glass, developing a peel strength of 1.0 kg per 25mm width. We offer thicknesses from 1mm to 10mm and slit widths as narrow as 3mm. The foam compresses under load but rebounds reliably, with a compression set under 15% at 50°C. Temperature range is –10°C to 80°C, making it suitable for window sealing, equipment cushioning, and automotive trim attachment. For extended outdoor exposure, choose the black grade which handles UV better.

TECHNICAL SPECIFICATIONS

KEY ADVANTAGES

• Bonds to metal, ABS, polycarbonate, glass, and powder coated surfaces – no extra adhesive needed.
• Seals against rain and airborne dust – closed cells do the work.
• Peels off cleanly from smooth substrates; residue is minimal.
• Cuts noise and rattles from compressors, fans, and panel closures.
• We supply exact widths – you don’t pay for trim waste.

PACKING & SHIPPMENT
Each single sided EVA foam tape roll comes with a release liner. Cut rolls are poly bagged; bulk orders go into cartons (36 rolls of 25mm width per box). Samples ship within 3–5 working days via air. Container orders take 20–25 days from packing confirmation and deposit. Shipping port Shenzhen, Guangzhou, Foshan,etc

HOW TO USE

• Clean the surface – isopropyl alcohol works well.
• Let it dry fully.
• Cut tape to length with scissors or a knife.
• Peel off the liner and press the adhesive side down.
• Apply firm pressure – use a hand roller or flat block.
• Wait 24 hours before heavy loading or outdoor exposure.

APPLICATIONS

• Window and door gasketing.
• Automotive trim and badge attachment.

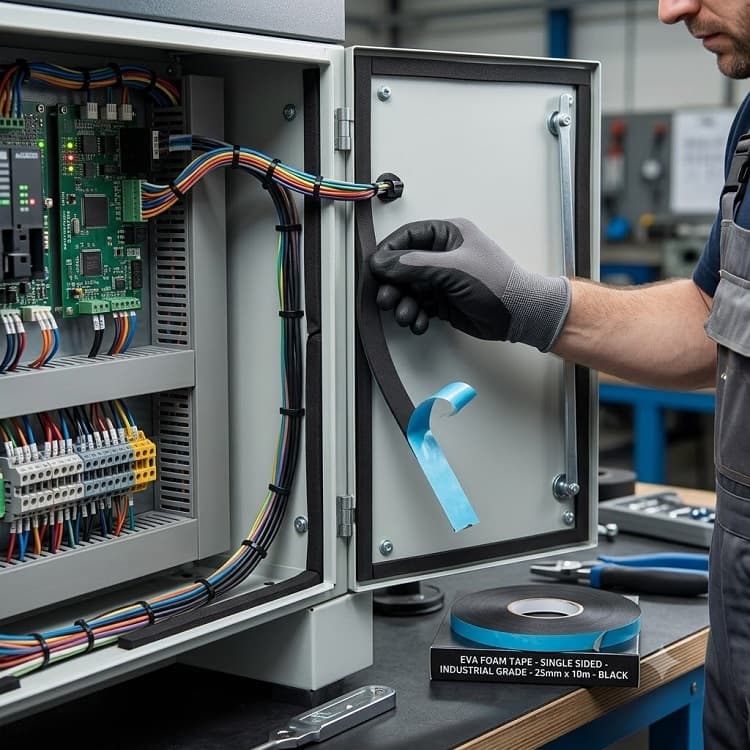

• HVAC duct and electrical enclosure seals.
• Equipment feet cushioning – prevents floor scuffs and reduces hum.
• Display and sign mounting – replaces screws.

FAQS
Q: Does single sided EVA foam tape hold vertically?
A: Yes, but use enough overlap – about 50mm² per 100g load.

Q: Can I use it outdoors ?
A: Yes.

Q: What’s the minimum order for custom widths?
A: 500rolls.

WHY CHOOSE US
Our single sided EVA foam tape is made in house – we compound the adhesive coating ,cutting and packing by ourselves.

We cut widths down to 3mm with ±0.3mm accuracy – useful for narrow channels.

Common thicknesses (2, 3, 5mm) are stocked in black and white, so lead times are shorter.

Could use different glue for different price requirement

Fast time response
