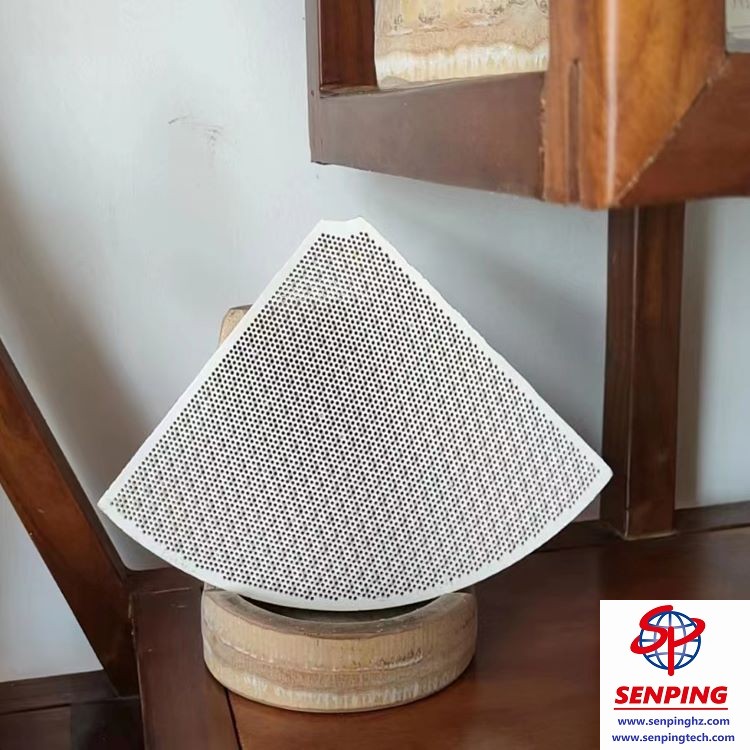

Infrared ceramic plate for BBQ grill spreads steady warmth across the cooking surface, so meat and veggies turn out just right.
Order(MOQ) :
1000pcsPayment :
T/T, PAYPALProduct Origin :
CHINAColor :
White,Beige,Black, Green,Red, or CustomizedShipping Port :
Shanghai, Guangzhou, Ningbo, ShenzhenLead Time :
15-20 daysEnergy Saving Infrared Ceramic Plate for BBQ Grill
The infrared ceramic plate for BBQ grill sits directly above gas burners and converts flame energy into long wave infrared heat. Unlike cheap metal radiants, this plate uses dense ceramic that doesn’t crack under sudden temperature changes. The porous surface helps even heat distribution, so you get fewer cold spots and more consistent searing. It also shields burners from grease drips, which cuts down flare ups. Over time, this ceramic heating plate holds its shape and won’t warp like metal alternatives. For anyone tired of replacing rusted or bent parts, this upgrade keeps your grill performing season after season.
|
Parameter |
Specification |
|
Material |
Cordierite ceramic |
|
Max Working Temperature |
1000-1200°C |
|
Thickness |
10-15mm |
|
Common Sizes |
136mm (custom available) |
|
Infrared Wavelength |
2–10 µm |
|
Compatibility |
Most gas grills with standard burner slots |
|
Advantage |
Details |
|
No More Hot Spots |
Porous ceramic structure spreads heat evenly across the whole plate. |
|
Built to Last |
Withstands extreme heat and cold water splashes without cracking. |
|
Less Flare ups |
Drippings vaporize on the ceramic surface instead of igniting. |
|
Easy Cleanup |
Turn the plate over and burn off residue – no scrubbing needed. |
|
Better Fuel Efficiency |
Infrared rays cook food faster, so you use less gas. |
Plates are wrapped in foam padding and sealed in a corrugated box.
Carton size is around 540*430*170mm and 230pcs per ctn. Then into pallet box.
Sample takes 7–12 business days via DHL or FedEx .
Sea freight for larger volumes.
Need a non standard shape or size?
We can open a new mold and do adjustment for current mold. Just send a drawing or an old plate.
Minimum custom order: 5000 pieces.
Q: Will this fit my three burner grill?
A: Measure the distance between burner slots. If it matches our standard lengths, it drops right in. For odd sizes, check our custom solution.
Q: Does it break easily if I drop it?
A: It’s ceramic – treat it like a thick tile. Normal handling is fine, but don’t toss it onto concrete.
Q: How often should I replace infrared ceramic plate for bbq grill?
A: Most users get 3 years with regular use. When you see deep cracks or uneven heating, it’s time for a new one.
Q: Can I use this with charcoal?
A: No. It’s designed for gas grills. Charcoal gets too hot and can melt the ceramic core.
We’ve supplied replacement parts for grill shops in Europe and Aisa since 2020. No fancy marketing – just honest specs and quick answers. Our infrared ceramic plate for BBQ grill goes through a 48 hour heat cycle test before leaving the warehouse. If a plate cracks within one year, we send a free replacement, no questions asked.
