Plastic Underground Warning Mesh for Buried Utility Lines

Plastic Underground Warning Mesh for Buried Utility Lines

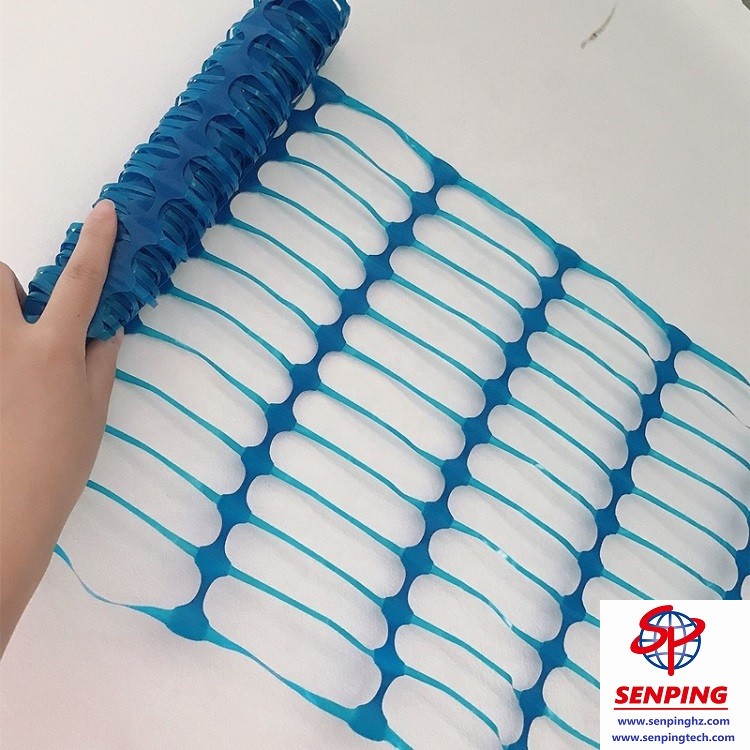

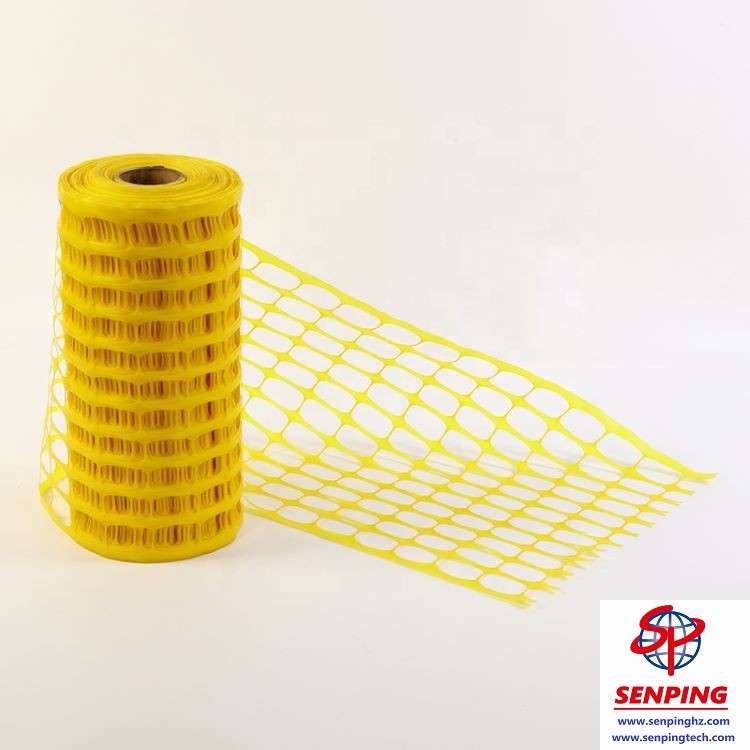

This HDPE underground warning mesh is laid over buried utility lines to stop excavators from cutting straight into a pipe or cable. The bright colour and printed warning text remain legible for years, even in clay, sand, or damp ground. The mesh structure lets water and gas pass through, so ground pressure does not build up under the sheet. It works alongside detectable warning tape and cable protection covers as a first line of defence during manual or mechanical digging. Contractors use it on trench jobs where service strikes are costly, dangerous, and easy to avoid with a simple visual barrier.

TECHNICAL PARAMETERS

• Material :  HDPE (high-density polyethylene)

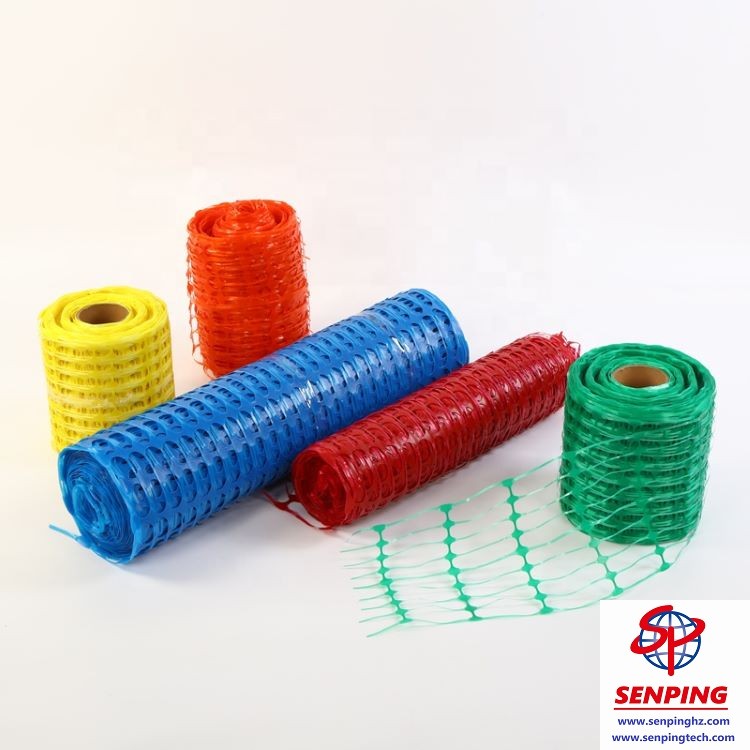

• Colour: Yellow, red, blue, green, or custom
• Roll width: 200 mm / 300 mm / 1000 mm
• Roll length: 50 m / 100 m / 200 m
• Mesh opening: 100x26mm
• Mesh weight:   60g/m2
• Service temperature: -20 °C to +70 °C
• Standard: EN 12613

KEY ADVANTAGES

• Made from HDPE that resists rot, acids, and soil chemicals.
• High-visibility colours won’t fade quickly underground.
• Lightweight rolls are easy to carry into a trench.
• Mesh design lets water drain through instead of pooling.
• Reduces the chance of expensive utility strikes during excavation.

PRODUCT PACKING & SHIPPING

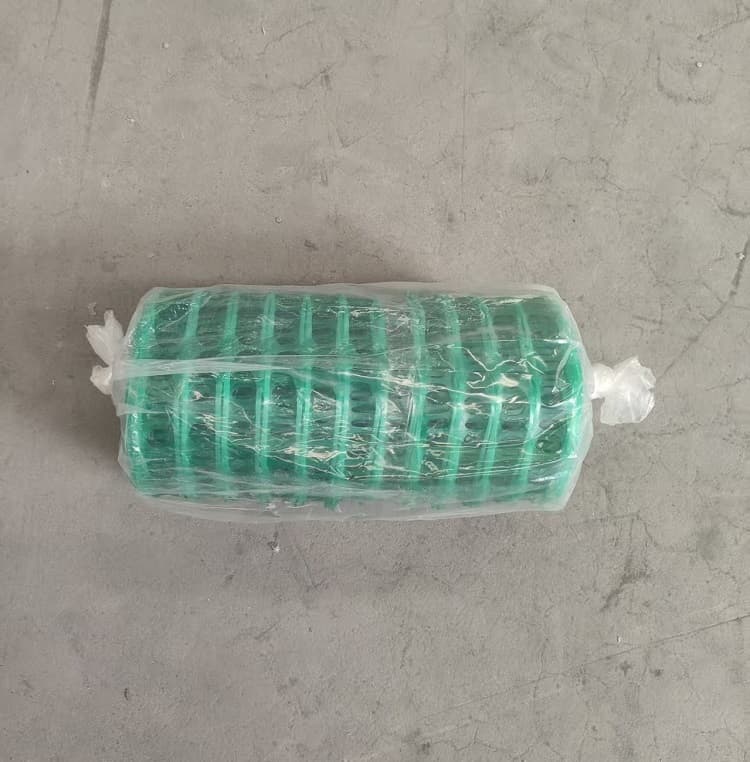

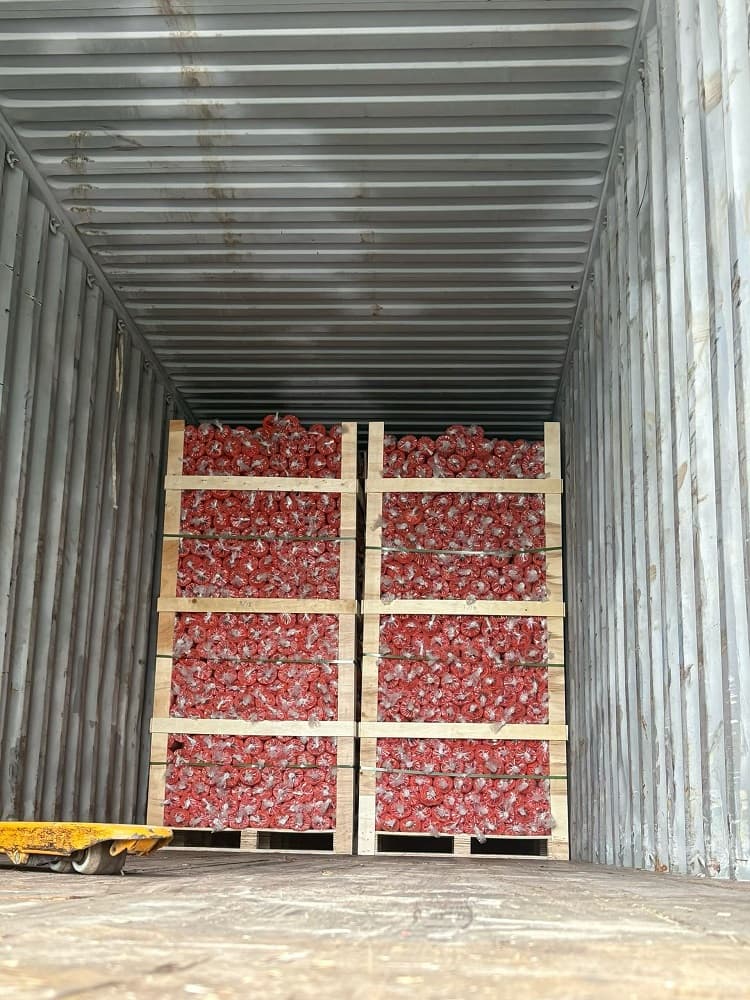

Each underground warning mesh roll is sealed in a clear poly bag with a label showing colour, size, and print. Rolls are packed in strong export cartons or on pallets depending on quantity. Standard sizes stock can ship from stock in 3–5 working days. Customized mesh usually leaves our warehouse within 20 working days. Ocean, air, and courier options are available.

HOW TO USE

1. Prepare the trench and lay the utility line as normal.
2. Add a layer of sand or fine backfill over the line, usually 200–300 mm.
3. Unroll the mesh directly above the utility, print side up.
4. Keep the mesh flat and centred over the line.
5. Continue backfilling carefully. If the mesh becomes visible during later work, stop and check what lies below.

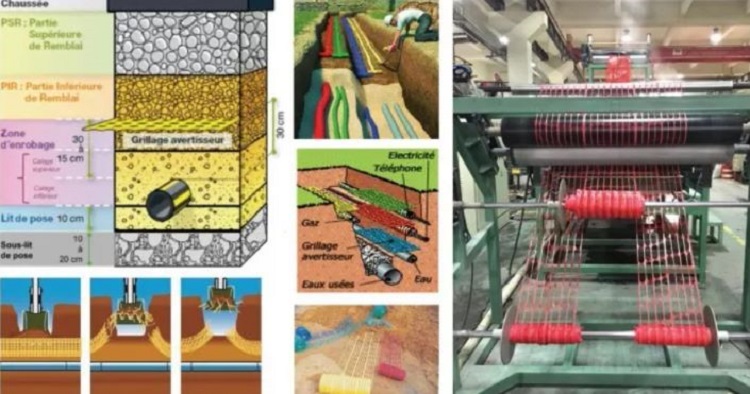

APPLICATIONS

• Water and sewer mains
• Natural gas pipelines
• Power and telecom cables
• Fibre optic routes
• Irrigation and district heating lines

FAQS

 Q: Can this underground warning mesh be detected from the surface?

A: The standard mesh is not detectable. For locating from above, pair it with a detectable warning tape or tracer wire.

 Q: What width should I choose?

A: Match the width to the trench or the line width. Many crews use 300 mm for cables and 500–1000 mm for larger pipes.

 Q: How deep should the mesh be buried?

A: Usually 200–300 mm above the utility, but follow your local utility regulations.

WHY CHOOSE US

 We supply underground warning mesh that actually stays legible and intact after backfilling. Our factory runs strict batch checks on material thickness, colour fastness, and print adhesion before packing. We keep standard sizes in stock, so most orders go out within days. For contractors and distributors, we can match existing colour codes and offer private-label printing.
