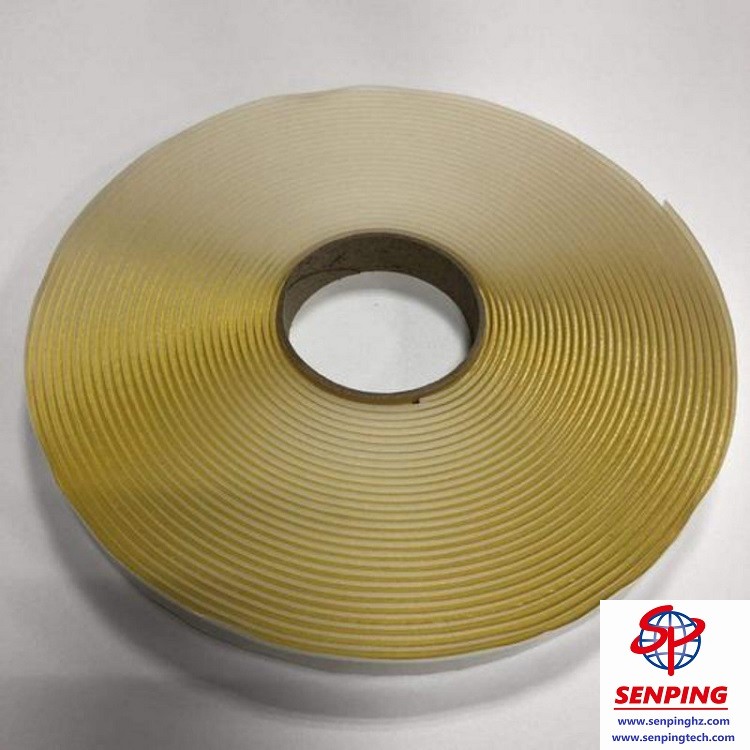

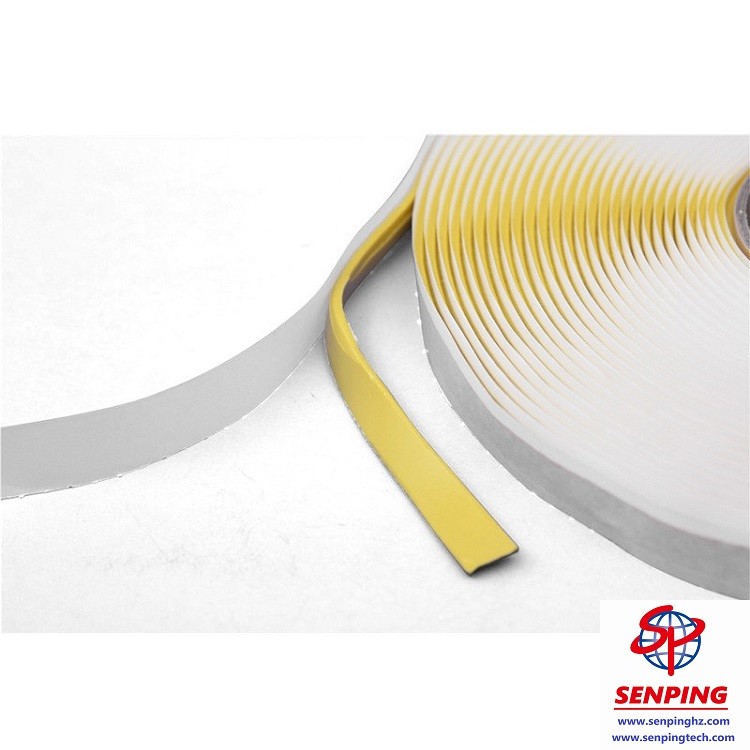

Yellow High Temperature Butyl Tape – Hot-Work Sealing Strip

Yellow High Temperature Butyl Tape – Hot-Work Sealing Strip

High temperature butyl tape isn’t hardware-store stock. It's meant for turbine nacelles, aviation ground ducts, and oven-adjacent plant work. The compound takes continuous heat up to 150°C without softening into a gooey mess, and it withstands 150°C peaks for short spells – four hours, give or take. We added the yellow pigment not for looks, but for visual traceability. Inspectors spot it immediately on a white GRP panel or a galvanised flange. No second-guessing during a pre-flight walkaround or a tower climb.

It grabs powder-coated steel, anodised aluminium, and fibreglass-reinforced plastic without a primer coat. You press it on by hand, roll it flat, and it stays. Vibration doesn't shake it loose. Condensation doesn't track underneath. The formulation has no halogens or heavy-metal stabilisers, so it ticks the REACH boxes without any extra paperwork. If you accidentally pierce it during installation, the butyl mass flows back into the puncture – self-healing in a practical sense. We ran this stuff on a test rig alongside acrylic foam tape; the butyl outlasted the acrylic by three to one in cyclic thermal shock.

TECHNICAL SPECIFICATIONS

• Base ：High-molecular-weight butyl rubber
• Colour： RAL 1018 (yellow)
• Service temp (continuous) ：-40°C to +150°C
• Peel adhesion (steel) ：≥ 28 N/25mm
• Tensile： ≥ 0.40 MPa
• Elongation： ≥ 600%
• MVTR： ≤ 0.15 g/m²·24h
• Thickness tolerance： ±0.2 mm
• Shelf life ：24 months unopened

KEY ADVANTAGES

• Holds from -40°C to +150°C – no hardening, no flowing.
• No torch, no primer, no heat gun. Hand-pressure application.
• Won't corrode copper, aluminium, or galvanised surfaces.
• Stays elastic – moves with the joint during thermal cycling.
• Re-enterable up to two hours after you lay it down.
• UV-stable enough for outdoor exposed sections.

PACKING & SHIPPING

Each high temperature butyl tape roll goes on a 76mm core with silicone release paper. Twenty-four rolls to a carton,  Export pallet get corner protectors and shrink-wrap on pallets.

Sea freight for project lots.

HOW TO USE

• Wipe the substrate with IPA or MEK.
• Cut the High temperature butyl tape to length.
• Peel off the liner.
• Lay it on with even pressure, then roll over it once with a silicone hand-roller.
• For butt joints, overlap by 25mm minimum and finger-press the overlap edge.
• That's the whole procedure.

APPLICATIONS

• Wind tower hatch seals and blade-root gaskets
• Aircraft maintenance ducting and avionics-bay environmental seals
• Railcar roof seams and HVAC plant duct connections
• Solar thermal collector frames

FAQS

Q: Does it off-gas inside enclosed bays?

zero outgassing per ASTM E595. We've used it in avionics compartments without optical-coating fogging.

Q: Sticks to gel-coated GRP?

Yes .

Q: Yellow colour stays?

It fades slightly after 12 months outdoors, but seal performance doesn't change.

WHY CHOOSE US

• We batch-test this yellow high temperature butyl tape in our own oven per batch
• Our tech guys used to install sealing systems on offshore platforms. They're not sitting in a quiet office – they know what fails in the field and they tell you straight.
• You get a sample roll free before you commit – we ask only that you run your own adhesion test on your actual substrate.
